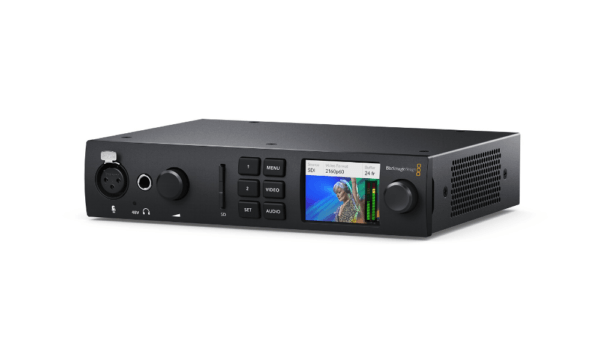

In addition, this device offers 45 W of power via the Thunderbolt 3 port, making it easy to load computer equipment while connected.īlackmagic UltraStudio 4K Mini capture card features The UltraStudio 4K Mini includes a universal 110 - 220 power supply with a conventional IEC connection for use anywhere in the world, without the need for bulky transformers. The 12G-SDI input connection allows UHD and images to be processed via a single BNC cable and the two 12G-SDI output links facilitate the processing of stereoscopic signals or the main image and background simultaneously, at a resolution of 2160p30. In the case of the latter, the captured images are a perfect copy of the original, pixel by pixel, with no loss of detail, allowing the best possible quality to be obtained. UltraStudio models support popular compressed formats, such as ProRes and DNxHD, or 10-bit uncompressed.
The USB port allows you to connect a mouse or keyboard and the RS-422 remote control port is compatible with Sony products. Its front panel has several controls and an LCD screen to configure the device and monitor the signals, as well as an XLR input for microphones and 0.25 inches for headphones. It also incorporates an SD card reader that offers the possibility of accessing the content of these units directly from a computer, so that it is possible to begin the editing process instantly.
It has 12G-SDI, HDMI 2.0 and analog connections with 8, 10 and 12 bit signal processing with high dynamic range ( HDR) in any format, from SD to DCI 4K at 60f/s, as well as external reference input connection to synchronize playback in broadcast systems. 4K HDR capture and playback card with Thunderbolt 3 interface.
